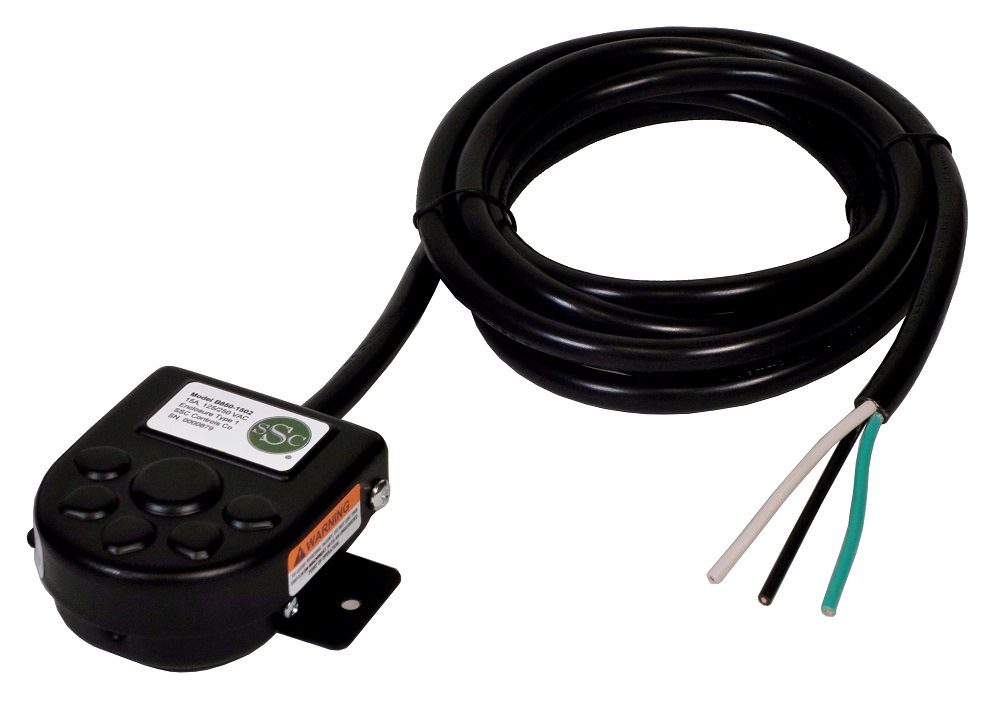

B850-1502 (B-Series Compact Light-Duty Foot Switch)

Description The B850-1502 is a compact foot switch for tight locations or pushbutton-style pedal action. Has simple “momentary” action: press and hold to turn on, release your foot to turn off.  Features a mounting bracket to attach the unit firmly to the floor or equipment if needed. Consists of a 15-amp, 125/250 VAC-rated switch with an 8-foot cable and 3 leads to connect to your device: one ground, one common, and one wired normally open. Ideal for power tools, emergency vehicles (fire truck siren or air horn), office and communication equipment, and more. Enclosure Type 1; IEC 60529 IP20. For indoor use in dry environments. Certified to CSA and UL standards. Replaces 491-SC36MP. Size: 3.0″ L x 2.6″ W x 1.2″ H; 0.5 pounds without cable. Mounting: mounting plate Electrical Rating: 15 A, ½ HP, 125/250 VAC; 0.1 A, 125 VDC Circuit: SPDT wired normally open Cable: 8-ft cable with leads Applications: Home or shop on/off, pushbutton, mounted switches, emergency vehicle siren or fire truck horn, many more Info Sheet Exterior Dimensions Cross reference: Linemaster® 491-SC36MP (with mounting plate)
