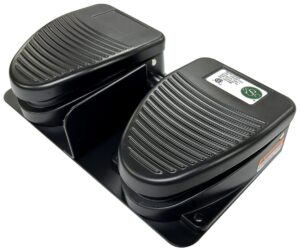

DF200 (Dual-Pedal F-Series Foot Switch, SPDT)

Description The DF200 is a dual foot switch with a connector tube to route the wiring from one side to the other, and it has a single cable exit point.  The foot switches are mounted on a welded steel base with a center divider and bumper feet.  Great for applications such as pipe rollers, scissor lifts, lift tables, positioners, twin pedal, up/down, and forward/reverse foot switch applications. Action: momentary (press and hold to turn on, release to turn off, like a car horn) # of Switches: 1 per side Electrical Rating, per Switch: 15 A, ½ HP, 125/250 VAC Circuit: SPDT each side with .187 x .020 quick-connect tabs for terminals or soldering Cable: none Product Info Sheet Cross Reference: Twin 632-S Clipper (see model number DF500 if you need 20 amp capacity) Note: The divider between the two foot switches is not included when the guard option is added.  If you need the divider with the guard option, please call to order, as this is a special option that adds $20.
